Description

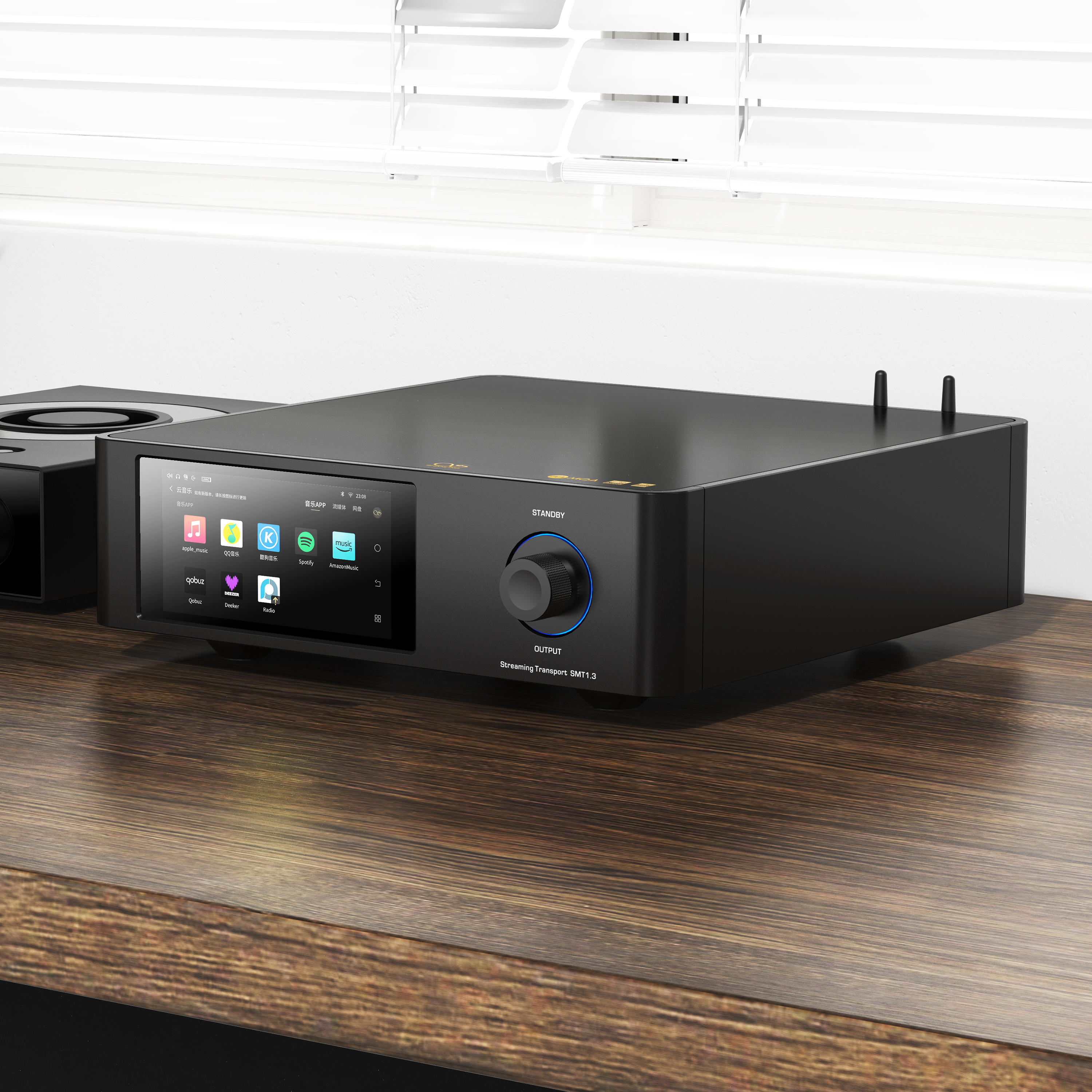

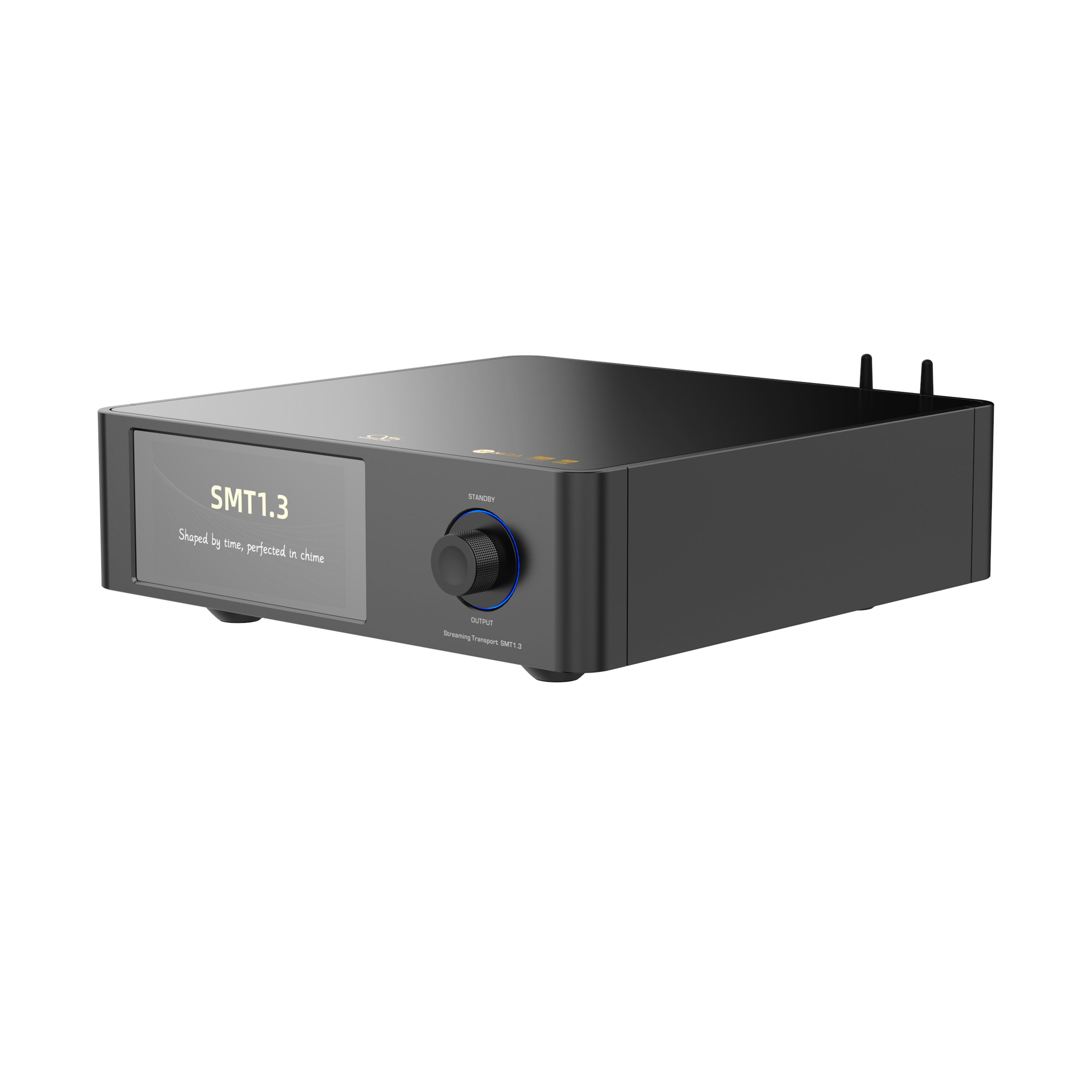

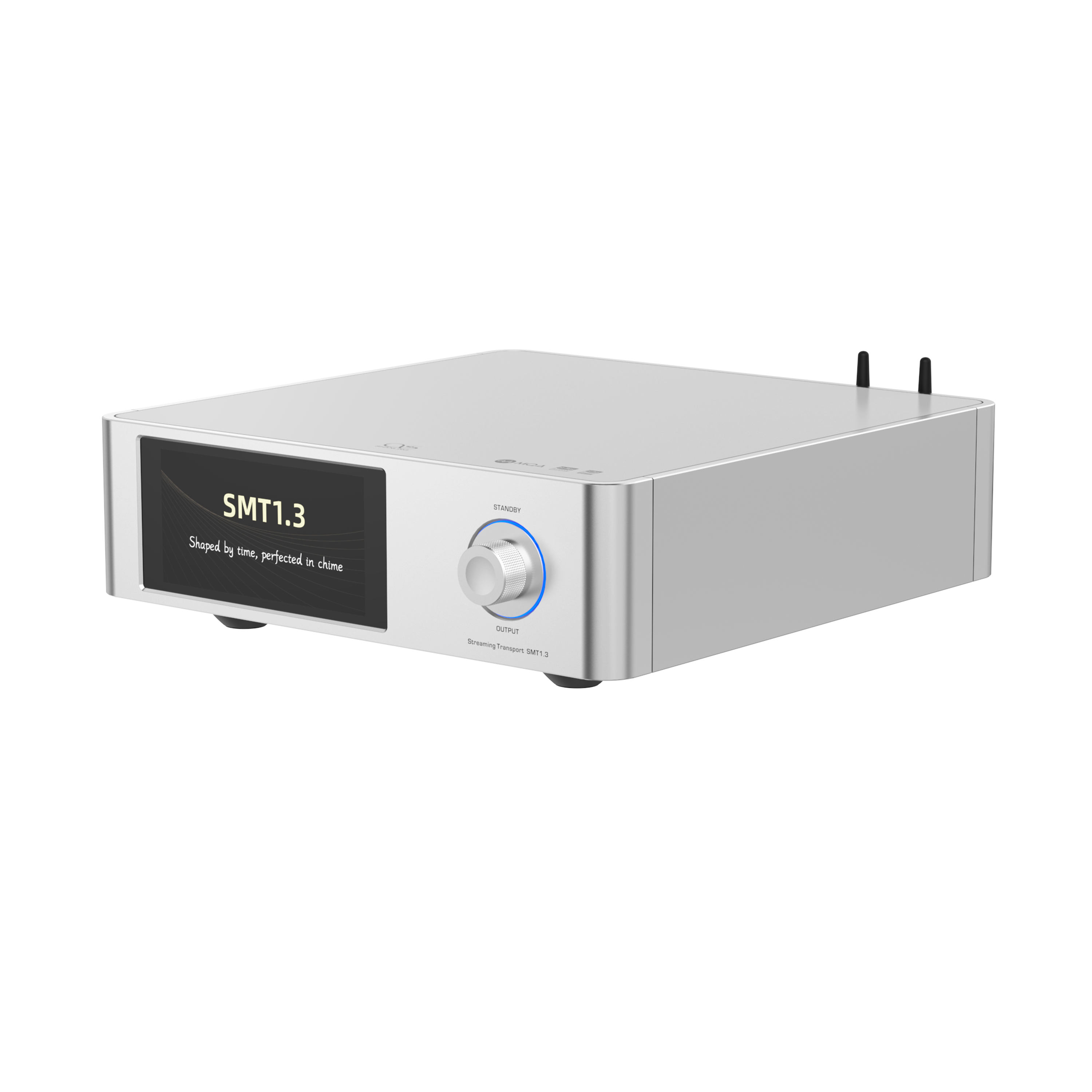

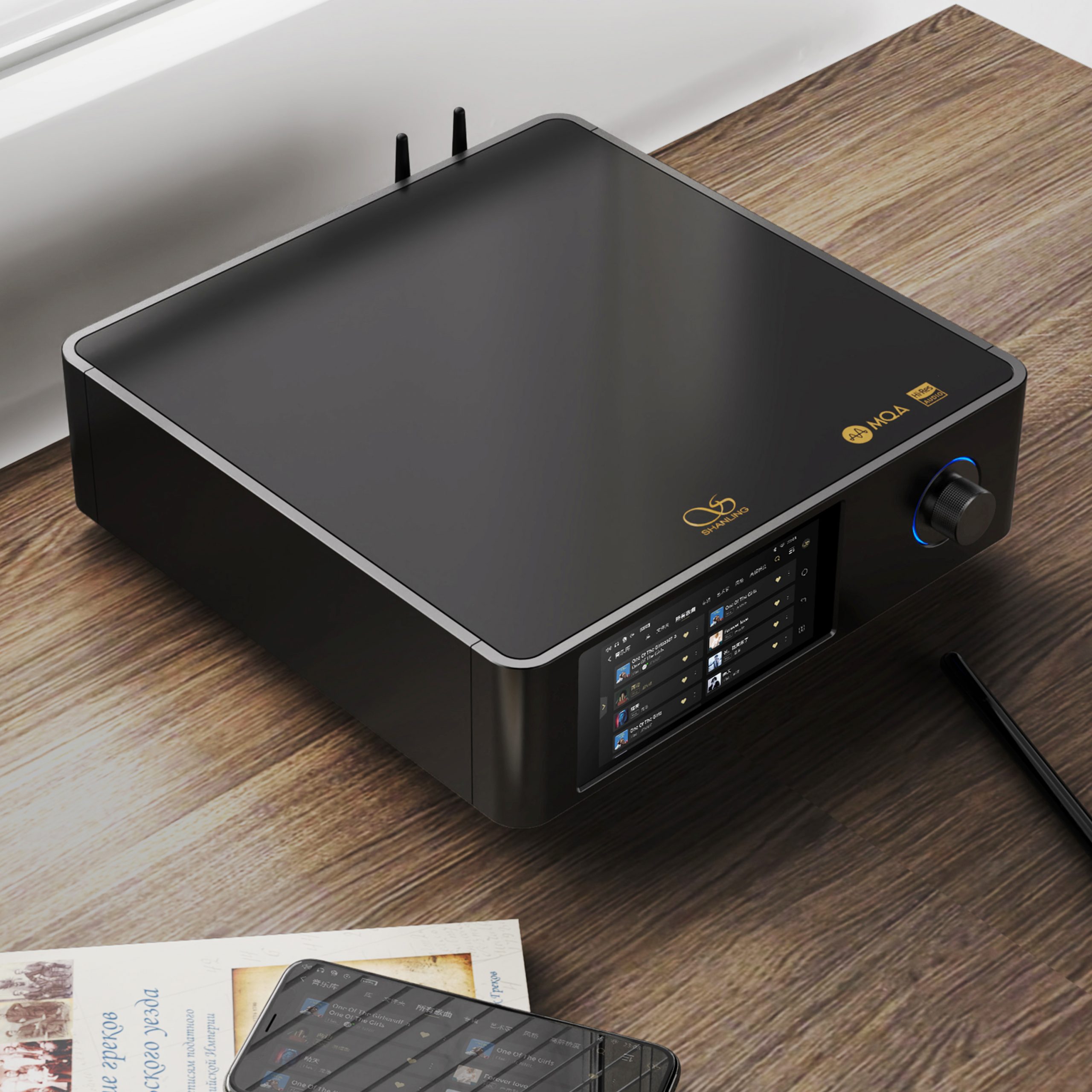

Designed for systems that already have a favourite DAC, the Shanling SMT1.3 is a transport‑only streamer that removes the internal DAC/headphone stage found in the SM1.3 to deliver an ultra‑clean, low‑noise digital signal. A customized, locked‑down Android 12 interface (controlled from the 4.96″ 1080p touch screen or the Eddict Controller app) runs on a 64‑bit ARM Cortex/Rockchip platform with 4 GB RAM and 64 GB internal storage, expandable via internal M.2 SSD (up to 2 TB).

A linear toroidal transformer power supply and careful isolation feed the digital section for reduced interference. The FPGA‑driven, pin‑configurable I²S output maximizes compatibility with external DACs, while XMOS‑based USB audio, AES/EBU, BNC, coaxial and optical S/PDIF provide flexible hookup options. High‑resolution support reaches PCM 32‑bit/768 kHz and DSD512 over USB/I²S; S/PDIF outputs handle up to 192 kHz PCM and DoP64. MQA decoding/rendering is supported (USB decoder / other outputs full render). Dual‑band Wi‑Fi 6, Gigabit network integration (DLNA, NAS, Samba, AirPlay 2) and major streaming services round out a transport engineered for longevity.

Key Specifications

• Purpose: Pure digital network transport (no internal DAC or analog outputs).

• Processor / OS: 64‑bit ARM Cortex (Rockchip) CPU, customized Android 12 OS; 4 GB RAM + 64 GB internal storage; M.2 SSD slot (up to 2 TB).

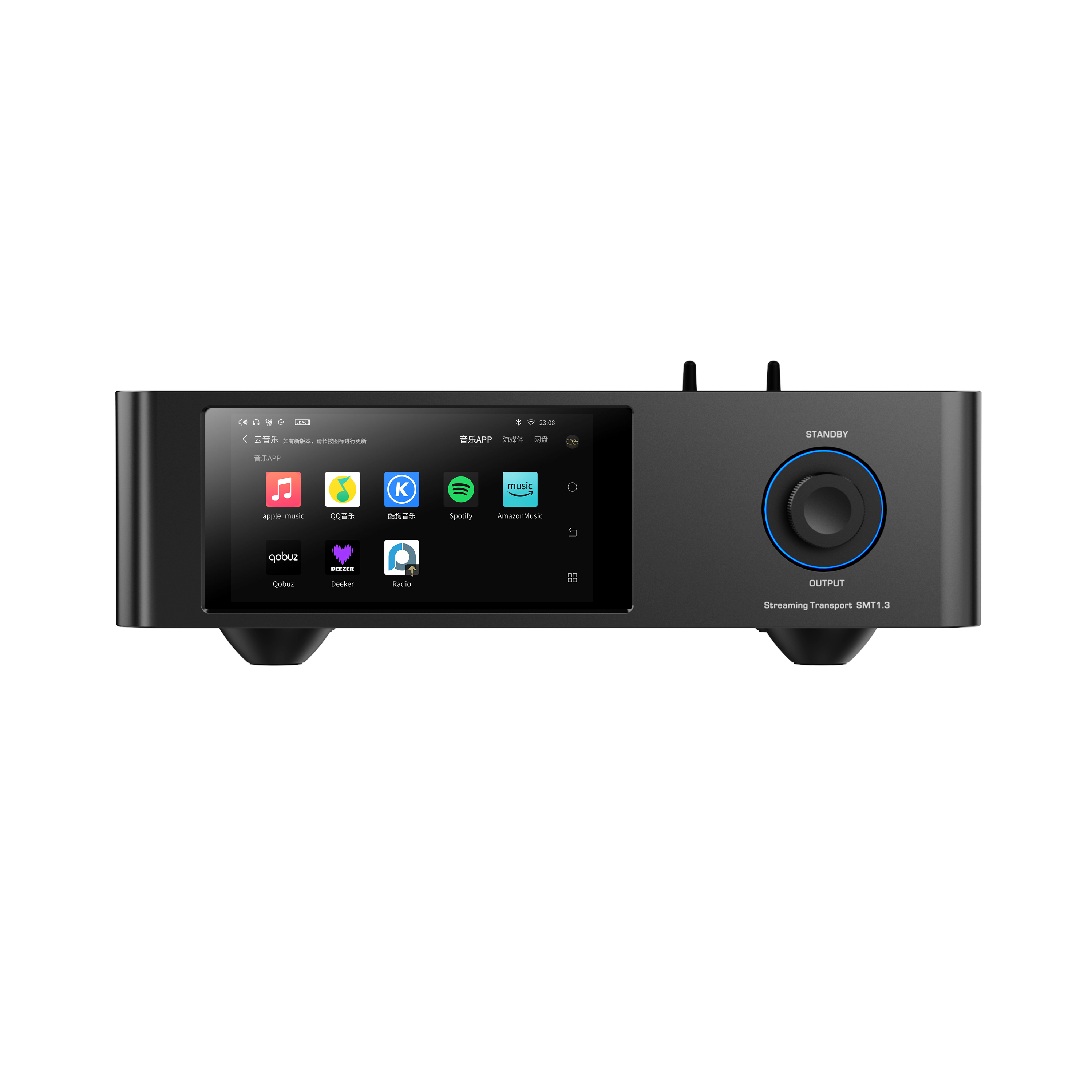

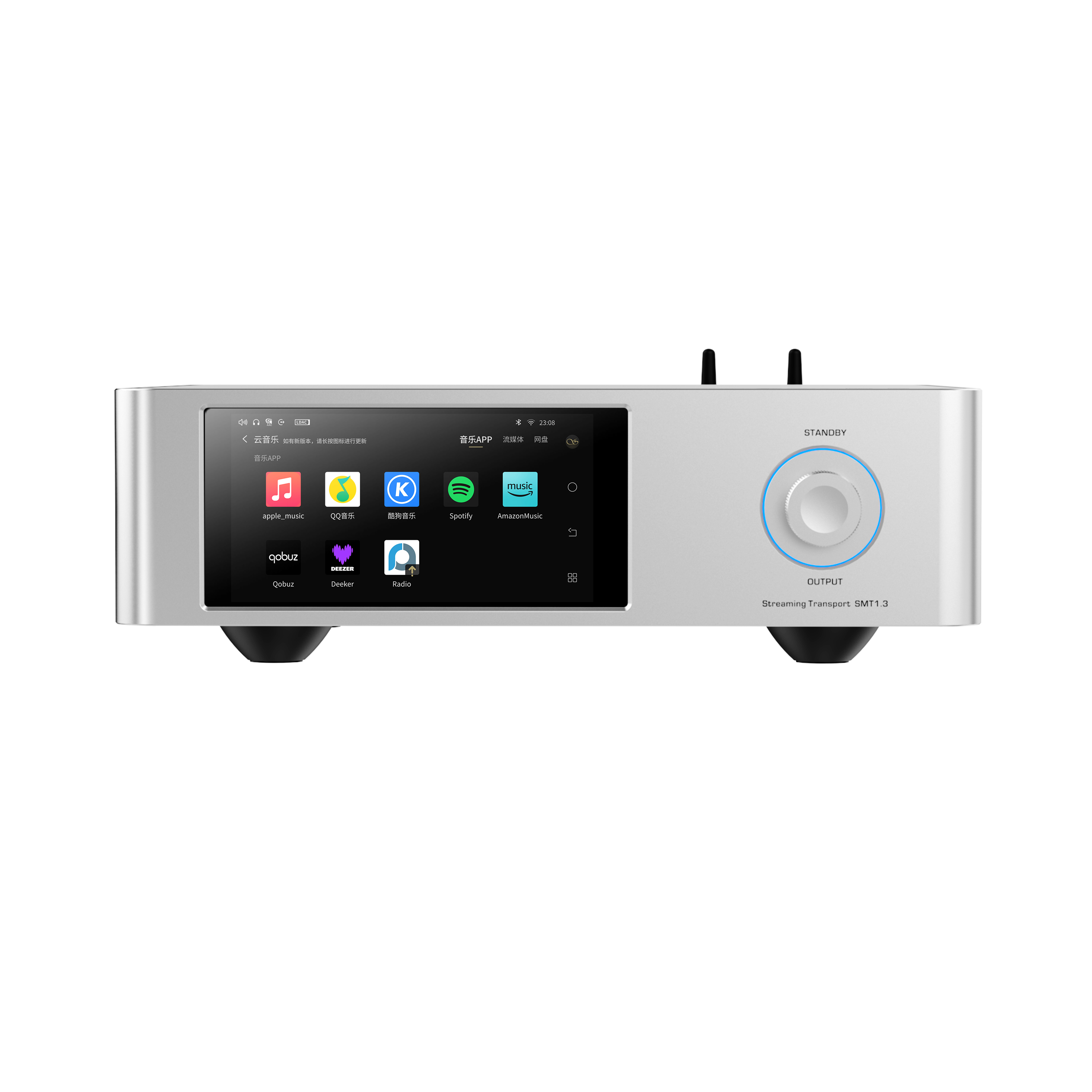

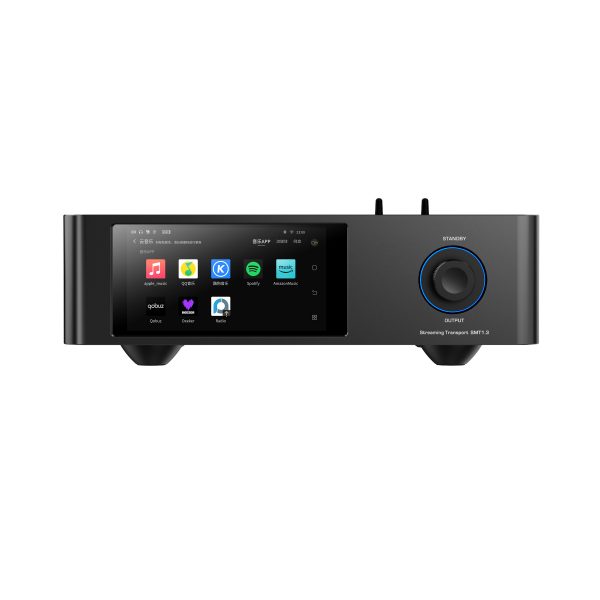

• Display: 4.96″ 1080p Sharp touch screen.

• Power Supply: Linear toroidal transformer.

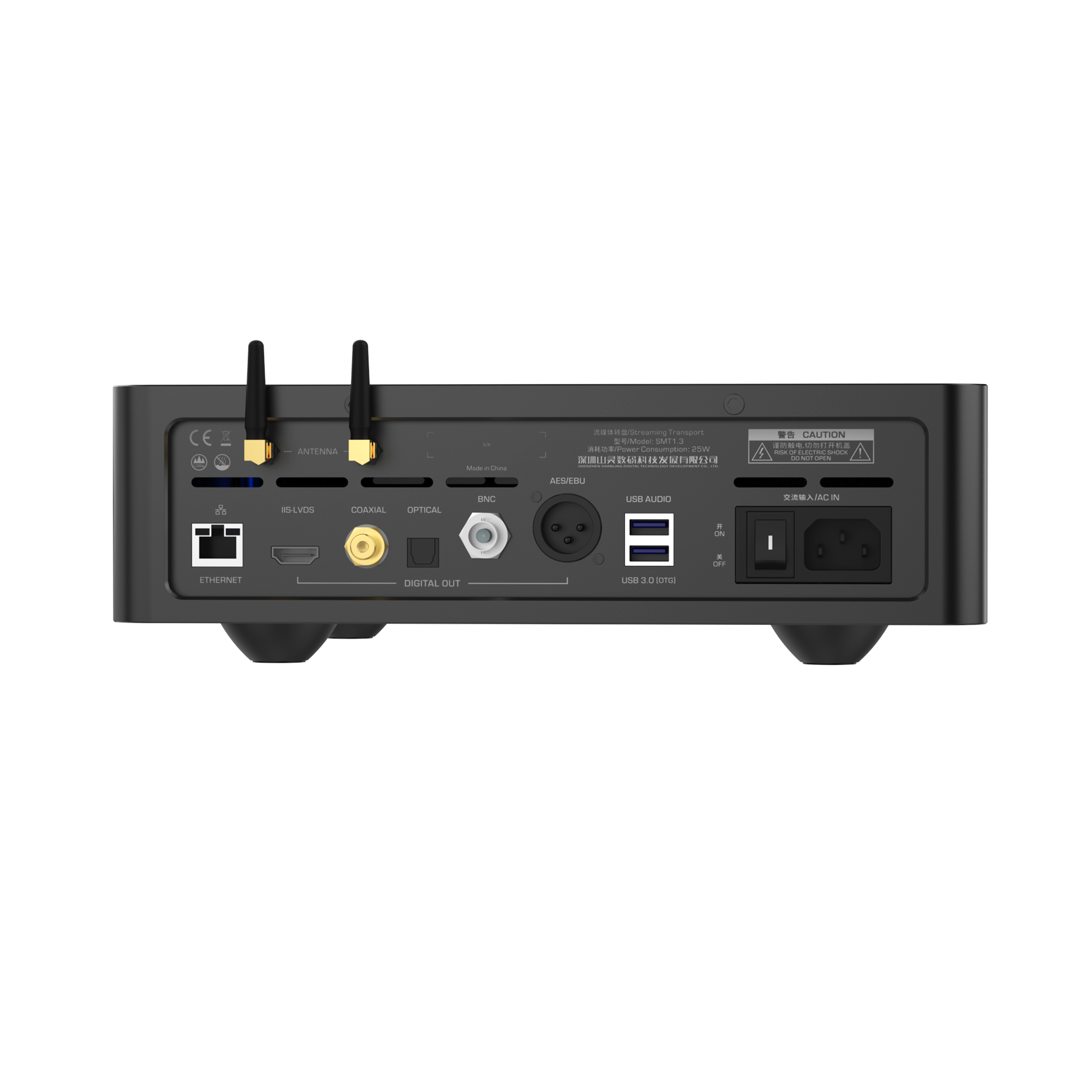

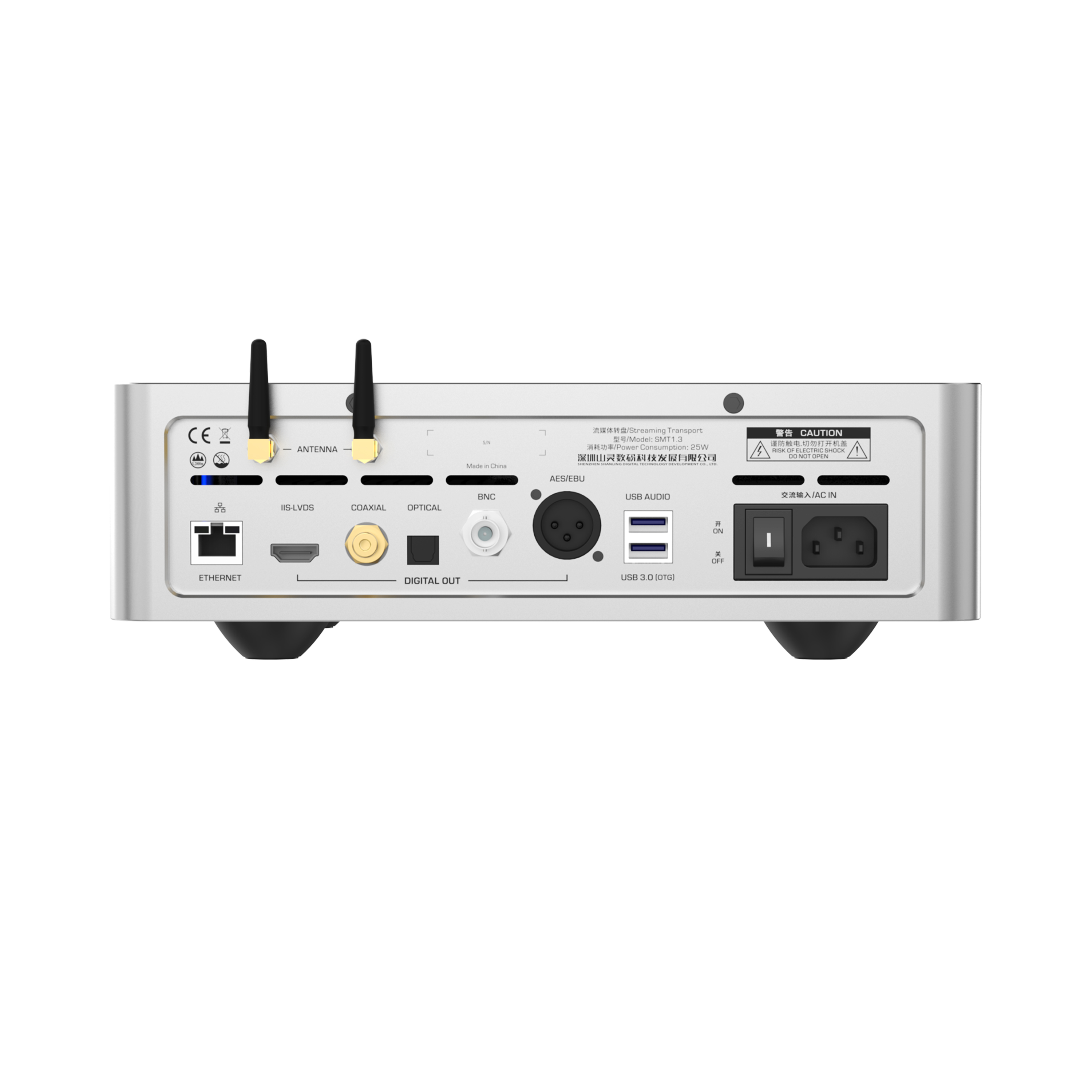

• Digital Outputs: USB Audio (XMOS), FPGA‑adjustable I²S, AES/EBU, BNC, Coaxial, Optical S/PDIF.

• Supported Rates: USB/I²S up to PCM 32‑bit/768 kHz & DSD512; S/PDIF up to 192 kHz PCM & DoP64.

• Wireless / Network: Dual‑band Wi‑Fi 6 (2.4/5 GHz), Ethernet; AirPlay 2, DLNA, NAS/Samba support.

• MQA: USB MQA decoder; other outputs full renderer.

• Dimensions / Weight: 280 × 280 × 76 mm; 4.5 kg.

• File Format Support: DSD, DXD, FLAC, APE, WAV, AIFF, ALAC, MP3, OGG, AAC, and more (with CUE).
