Description

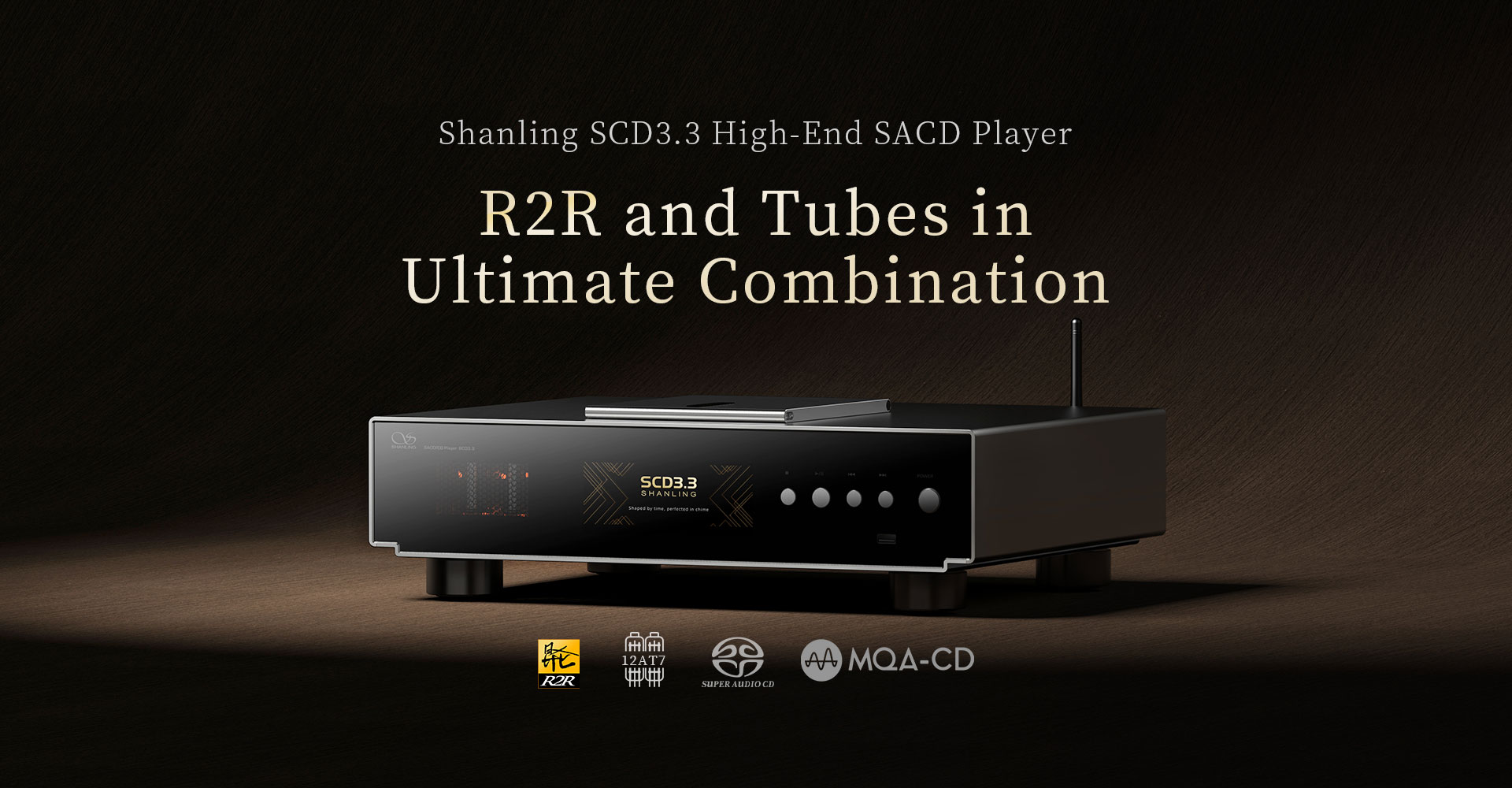

The Shanling SCD3.3 represents a top-tier approach to digital playback, combining an in-house SACD system, second-generation R2R DAC architecture, tube-driven analog stage, and a highly refined chassis design. Featuring full SACD support with true native DSD output over I2S, MQA-CD decoding, and ultra-high-resolution PCM/DSD playback, it is engineered as a complete high-end digital hub for advanced audio systems.

Proprietary Disc & Digital Engine

• Dedicated Shanling HD850 top-loading mechanism

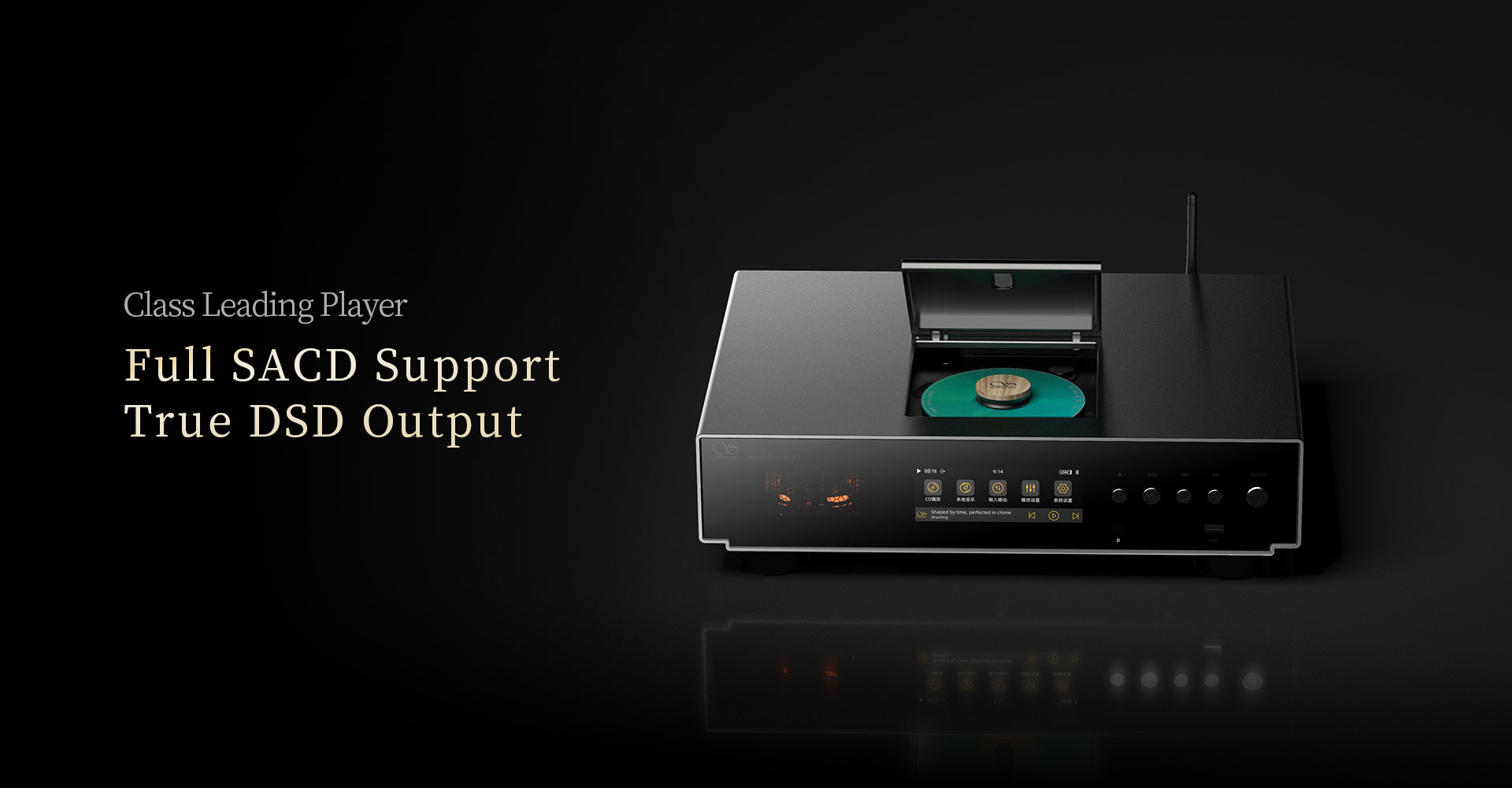

• Full SACD (including hybrid discs) and CD support

• Native DSD via FPGA-assisted I2S (10 selectable modes)

• DoP DSD64 via coaxial SPDIF

• Full 4× unfolding of MQA-CDs

• Smooth switching between CD and SACD layers

Advanced R2R DAC Platform

• Second-generation Shanling R2R system

• 212 × 0.0001% ultra-precision resistors

• 24-bit module using a 19-bit ladder with 4-bit compensation

• Push-pull differential circuit architecture

• Natural, smooth, high-fidelity R2R sound

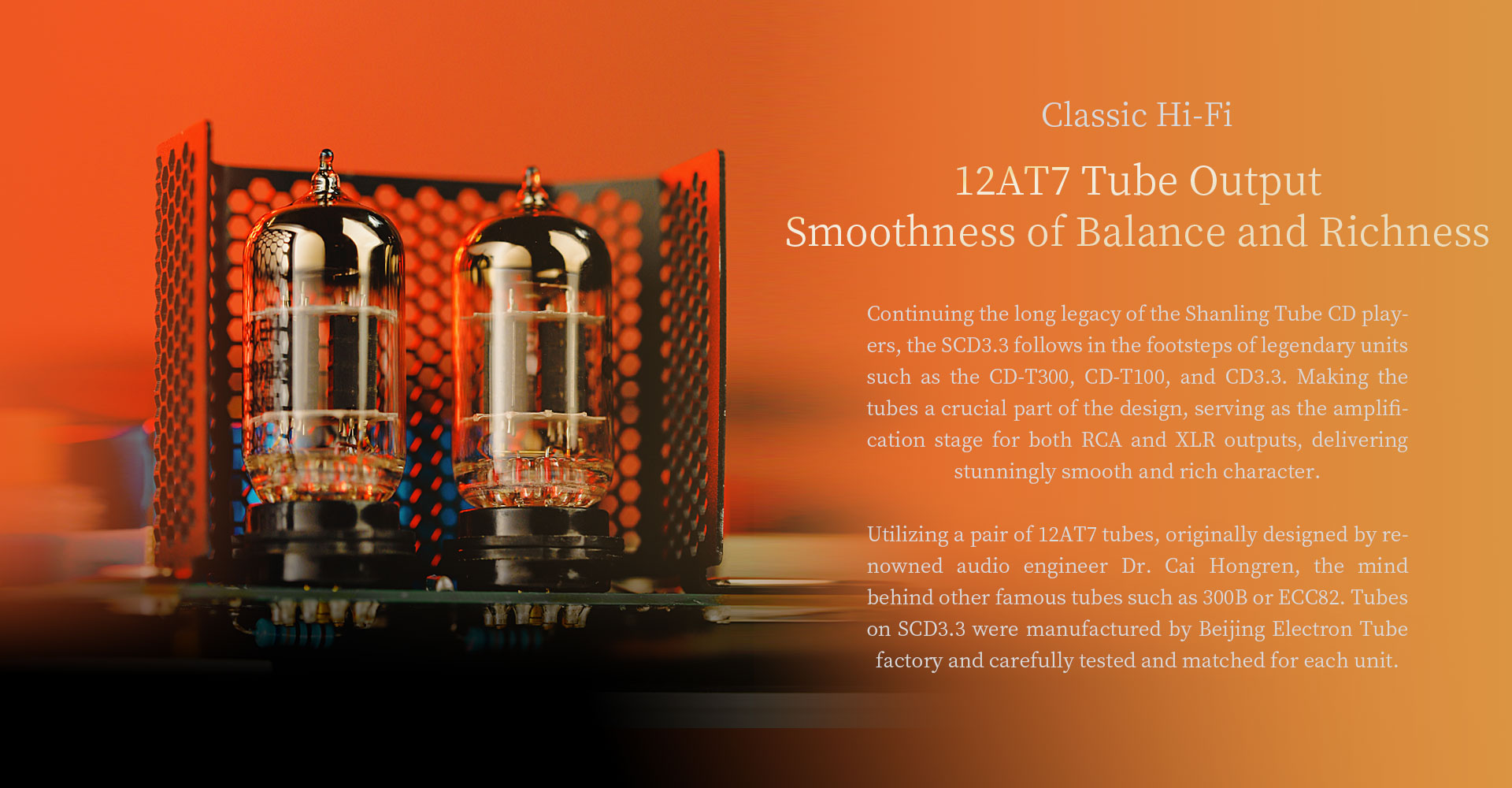

Tube Analog Output

• Pair of matched 12AT7 tubes designed by Dr. Cai Hongren

• Tube amplification for both RCA and XLR outputs

• Rich, smooth presentation with classic Shanling warmth

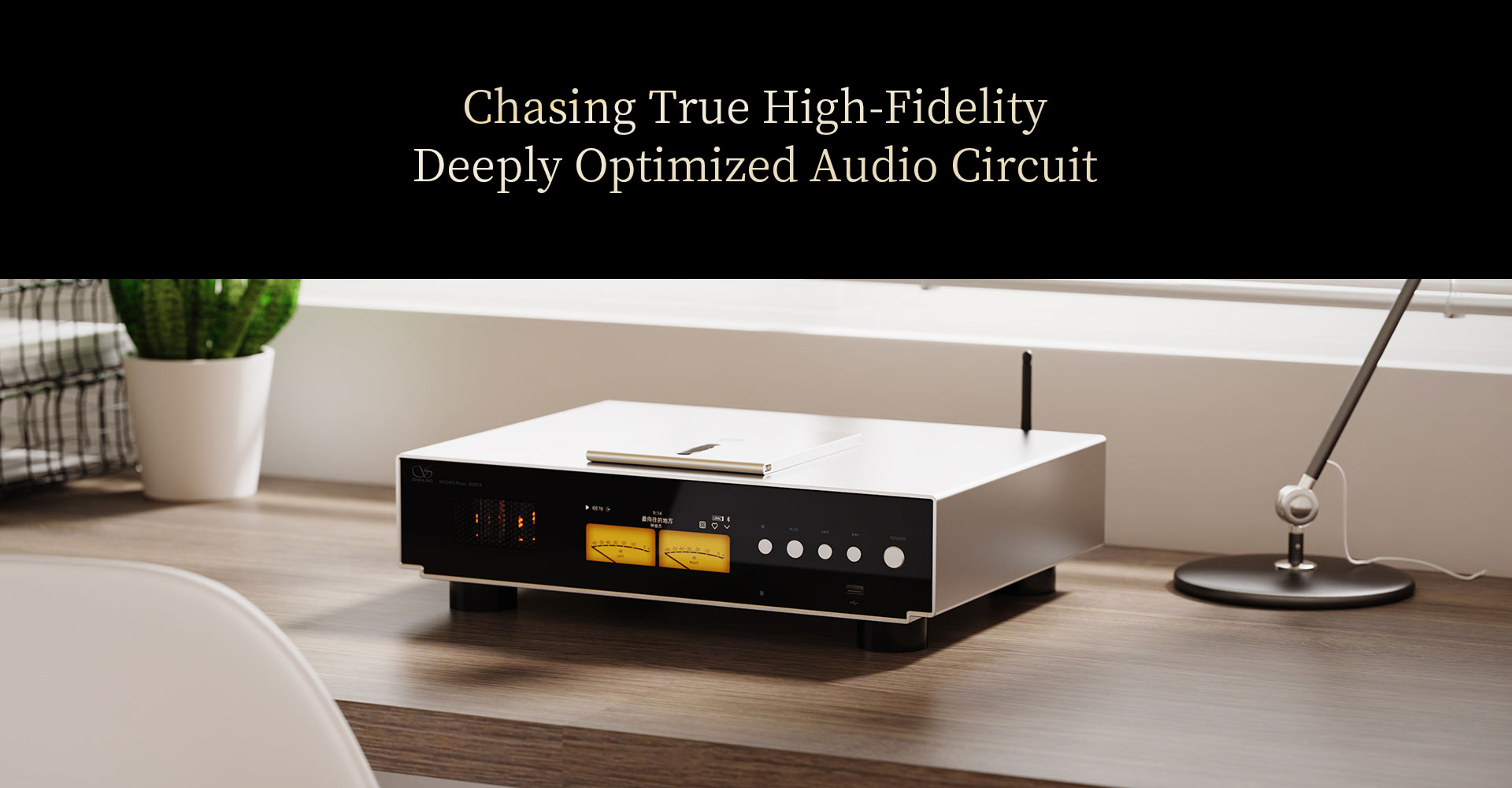

Audio Circuit Excellence

• OPA1612 low-pass filter

• MUSES8920E output stage

• ELNA, Nichicon & Panasonic capacitors

• Dual-oscillator clocking:

  • 90/98 MHz for FPGA

  • 45/49 MHz for XMOS

• Dual R30 transformers (66W total) + 15W auxiliary module

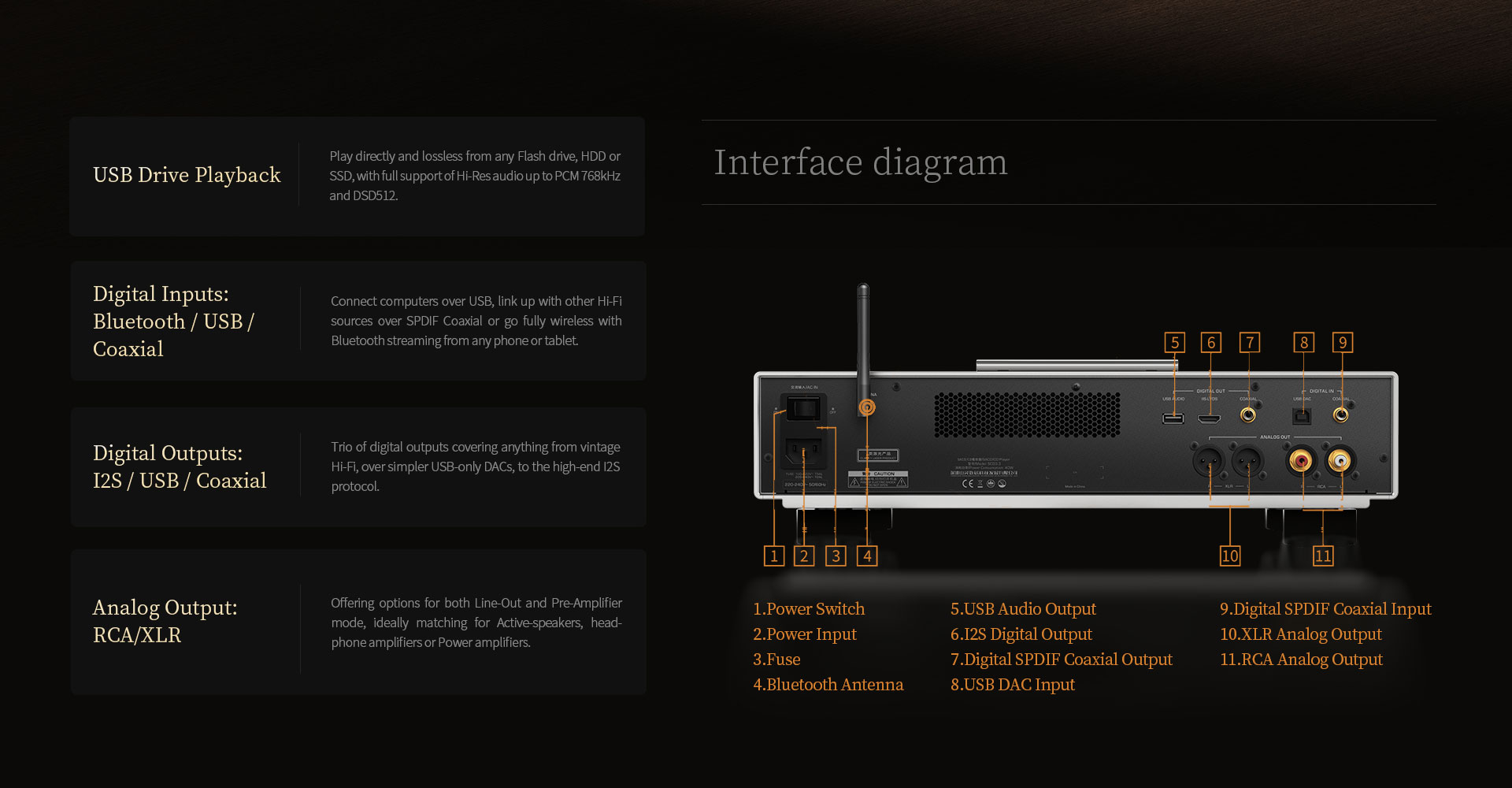

Connectivity & Playback

• USB Drive Playback up to PCM 768 kHz/32-bit & DSD512

• Digital Inputs: USB DAC, coaxial SPDIF, Bluetooth 5.0 (LDAC, aptX HD, aptX, AAC, SBC)

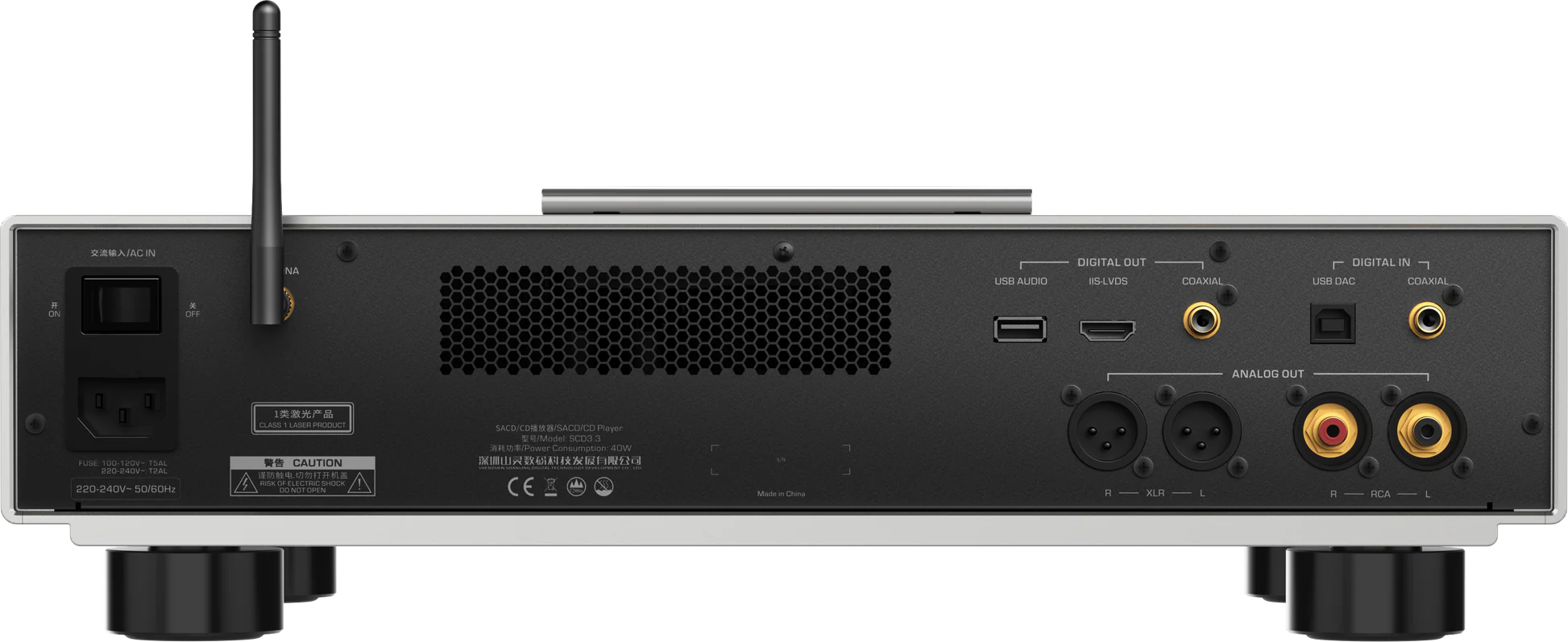

• Digital Outputs: I2S, USB Audio, Coaxial SPDIF

• Analog Outputs: RCA & XLR

• Line-out and preamp modes available

Construction & Interface

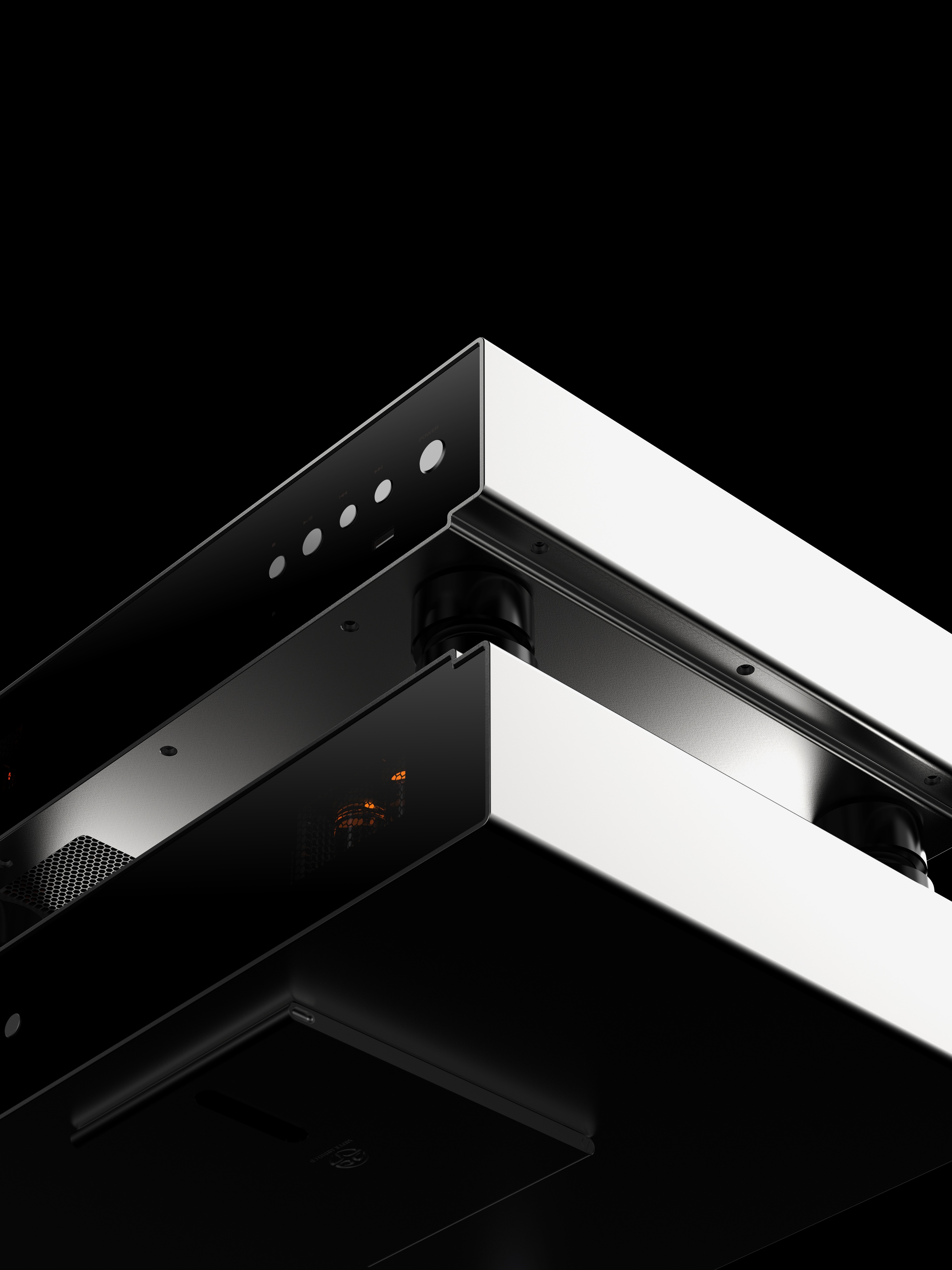

• CNC-machined aluminum chassis (9.5 mm thick)

• Total weight approx. 10 kg

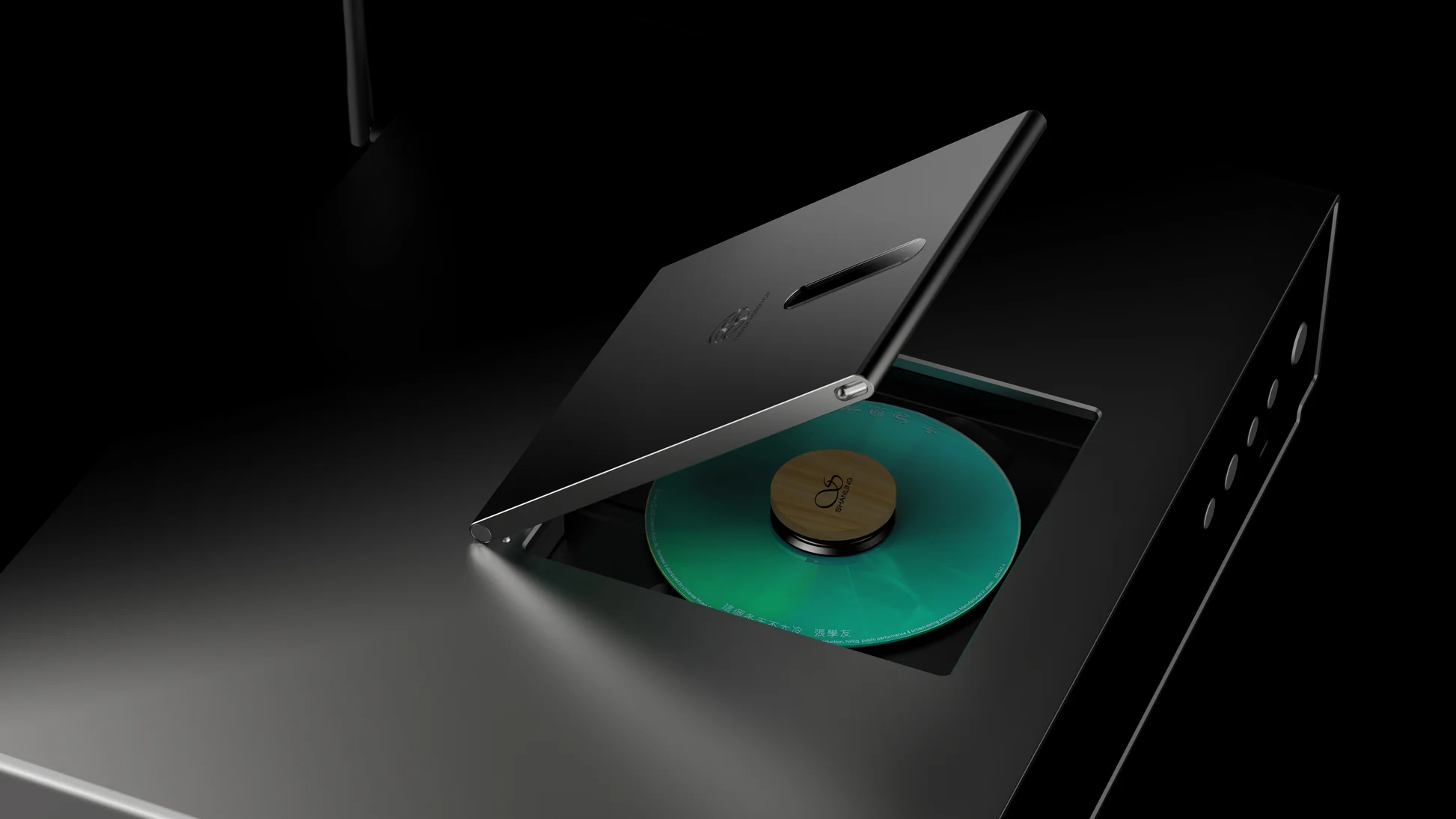

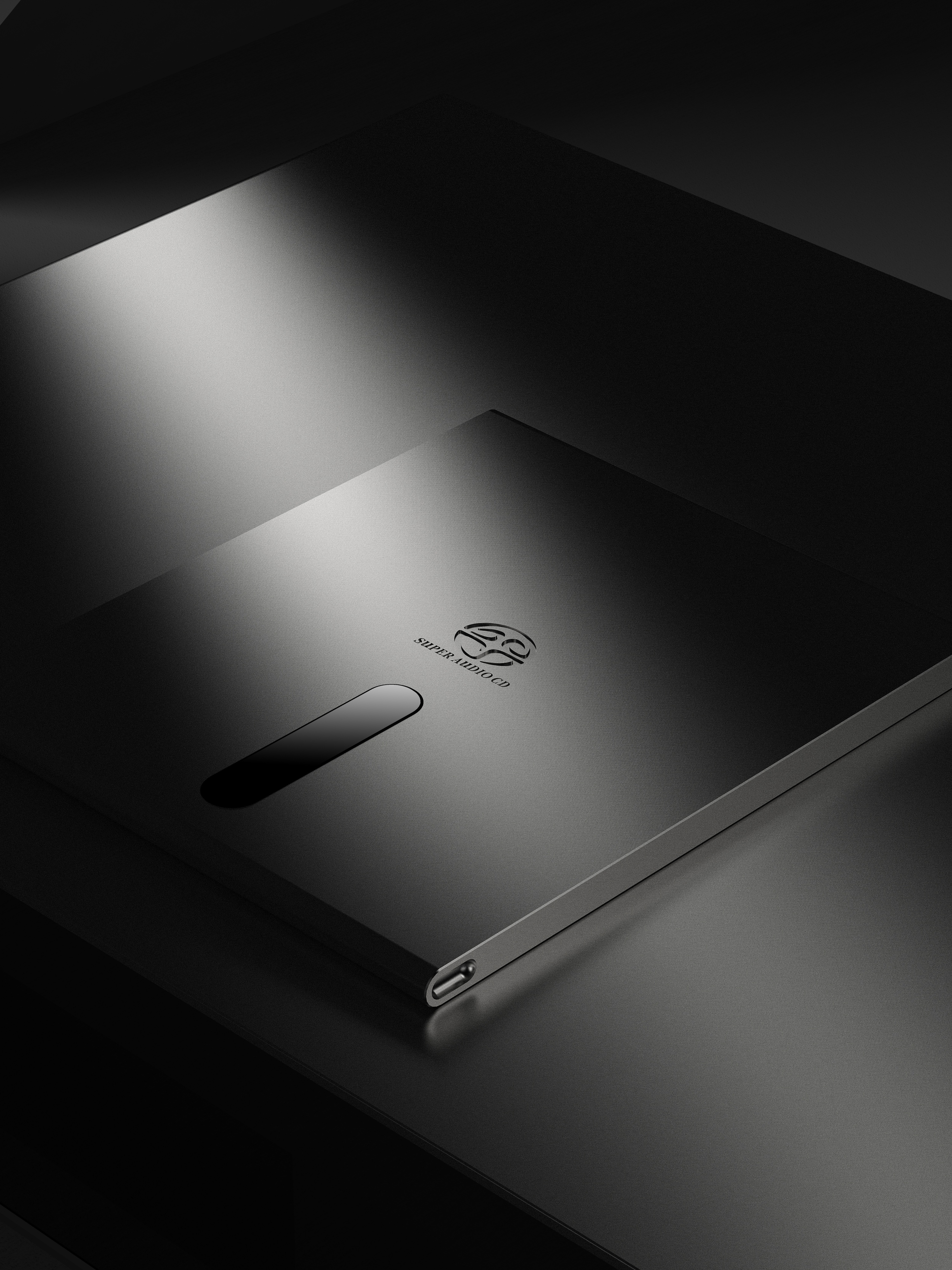

• Top-loading mechanism with precision puck

• 5-inch LG touchscreen (854×358)

• Dedicated tube window

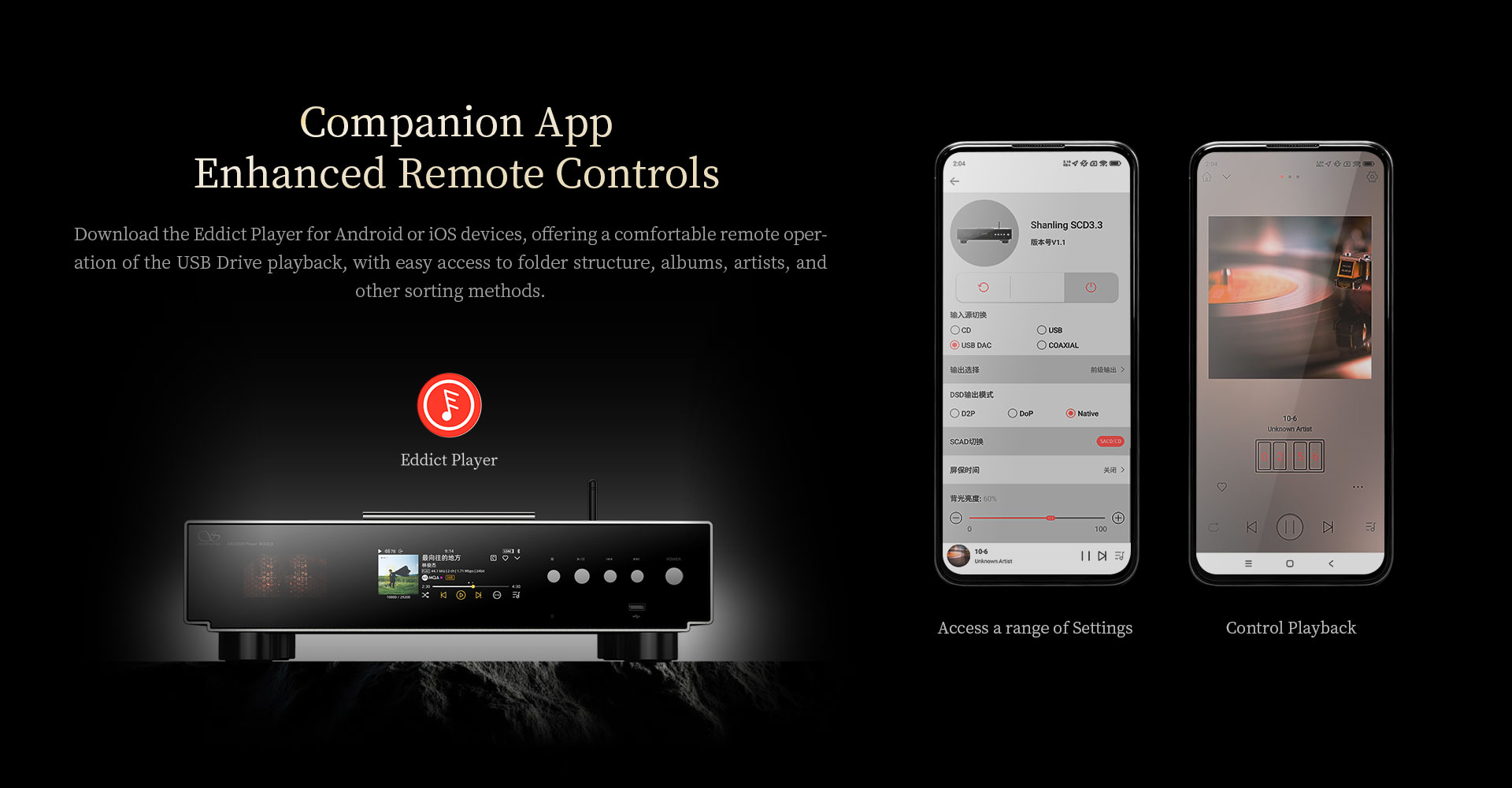

• Remote control + Eddict Player app integration

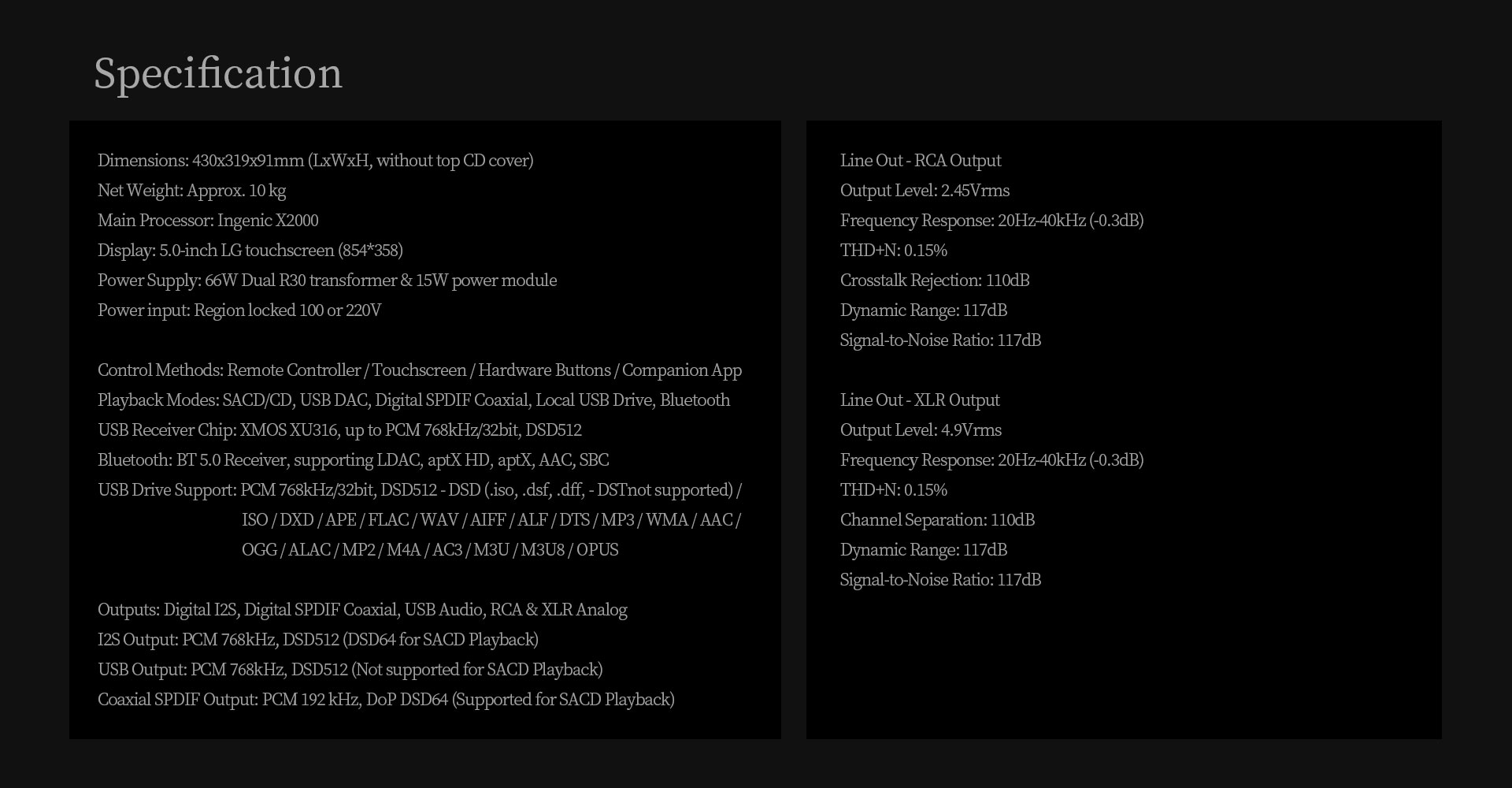

Technical Specifications

General

• Dimensions: 430 × 319 × 91 mm (without CD cover)

• Weight: ~10 kg

• Processor: Ingenic X2000

• Power: Dual R30 transformers (66 W total) + 15 W module

• Voltage: Region-locked 100 V or 220 V

Supported Playback Modes

• SACD/CD

• USB DAC

• Coaxial digital input

• USB Drive

• Bluetooth receiver

USB DAC / USB Output

• XMOS XU316 processor

• PCM up to 768 kHz/32-bit

• DSD up to DSD512

• (USB output not available for SACD playback)

Digital Output Limits

• I2S: PCM 768 kHz, DSD512 (DSD64 for SACD)

• Coaxial SPDIF: PCM 192 kHz, DoP DSD64

USB Drive Format Support

• PCM: 768 kHz/32-bit

• DSD: DSD512 (ISO, DSF, DFF)

• FLAC, WAV, AIFF, ALAC, APE, MP3, WMA, AAC, OGG, OPUS, M4A, MP2, AC3, DTS, M3U, M3U8

Analog Output Performance

RCA (Line Out)

• Output Level: 2.45 Vrms

• Frequency Response: 20 Hz–40 kHz (−0.3 dB)

• THD+N: 0.15%

• Crosstalk: 110 dB

• Dynamic Range: 117 dB

• SNR: 117 dB

XLR (Line Out)

• Output Level: 4.9 Vrms

• Frequency Response: 20 Hz–40 kHz (−0.3 dB)

• THD+N: 0.15%

• Channel Separation: 110 dB

• Dynamic Range: 117 dB

• SNR: 117 dB
