Description

SACD with True DSD Output
Designed to unlock the full potential of SACD discs, Zenith XST20 offers a unique option to play any SACD in its true DSD quality to any external DAC with DSD capabilities. Utilizing either I2S connection for full native DSD64 or DSD64 DoP over the Coaxial / Optical / AES / BNC. (Note: USB Output does not support SACD Playback)

Highly Optimized Disc Playback
Combining a top-loading design, a classic disc clamp and the highest-quality disc drive components, Zenith XST20 stands among the finest SACD / CD transports on the market. With full support of Single-layer and Multi-layer SACDs, standard CDs and even MQA-CDs, all with smooth track transitions thanks to its fully gapless playback.

FPGA-Assisted I2S Output
While many audiophiles are looking for a reliable I2S transport for their High-End DACs, the lack of standardization in this part of market would previously cause many compatibility issues. However, our Zenith XST20 features special hardware that allows switching between 10 I2S pinout modes, significantly expanding its compatibility to virtually all I2S DACs on the market.

Specifications

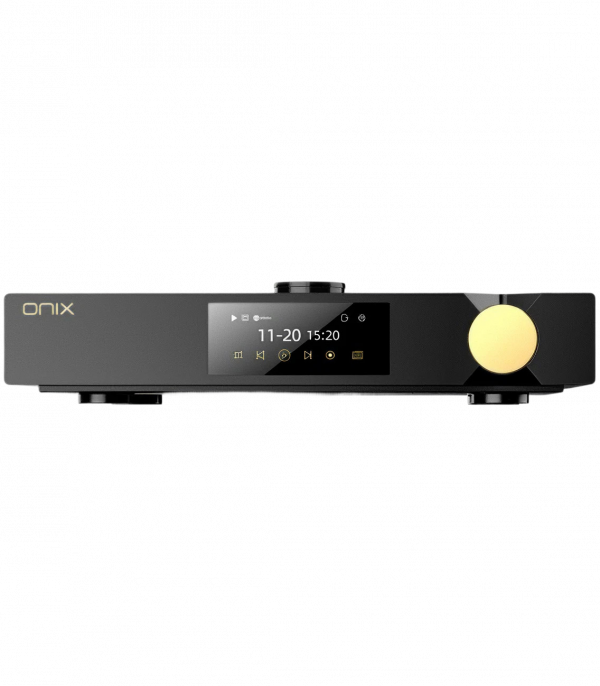

Model: ONIX Zenith XST20
Dimensions: 32 x 24 x 7.2 cm
Weight: 5.2kg
Display: 3.4-Inch Touch Screen
System: Basic System UI
Power Supply: 25VA Talema Transformer Disc
Support: CD, Multi-layer SACD, Single-layer
SACD, MQA-CD

Digital Outputs
Optical / Coaxial / AES / BNC:
CD Playback 44.1 kHz
SACD Playback DSD64 via DoP or D2P

I2S:
CD Playback 44.1 kHz
SACD Playback native DSD64

USB:
CD Playback 44.1 kHz
SACD NOT Supported
